9500 Shelter Lighting Kit

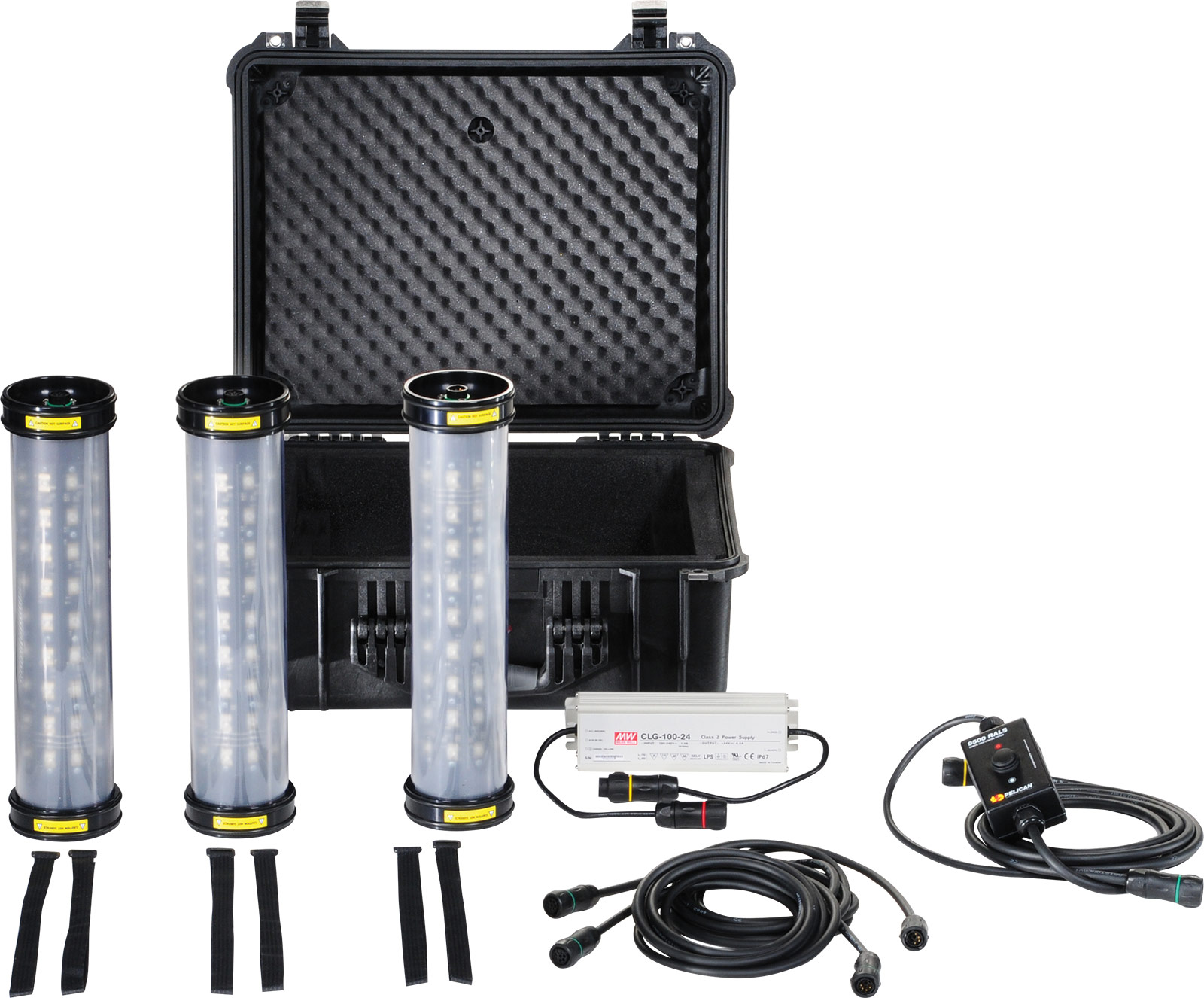

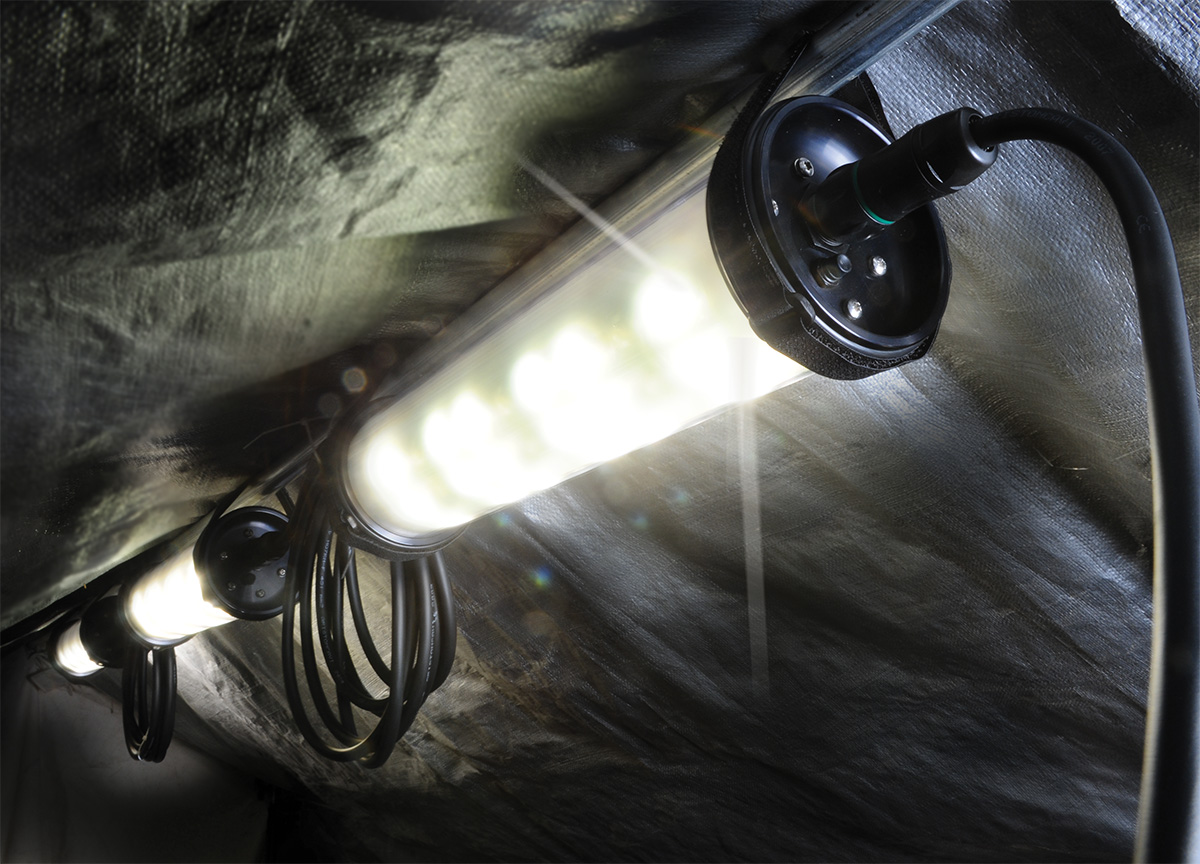

The 9500 Shelter Lighting System provides shelters with safe, secure and silent interior lighting. The 9500 contains three LED light heads equipped with both white and red LEDs allowing for maximum visibility or if needed, preservation of night vision. Each light head produces 2,000 lumens (6,000 total) of white light and 400 lumens of red light (1,200 total). The system is extremely rugged and deploys quickly. It contains three red/white LED light heads, universal transformer, inline switch, fixing straps for easy mounting and a series of color coded industrial grade connecting cables. The light heads are linked together and secured via hanging straps inside the shelter/accommodation. The light colour (red or white) is selected via an inline switch and each light head can be independently switched on or off. The lighting system can be powered by a variety of sources including 110-240v AC wall power as well as 12-30v DC options. Unlike conventional glass light tubes, the 9500 light heads are virtually indestructible.

  • White and red LED’s in each head
  • Silent operation
  • Virtually indestructible
  • Daisy-chain up to three light heads

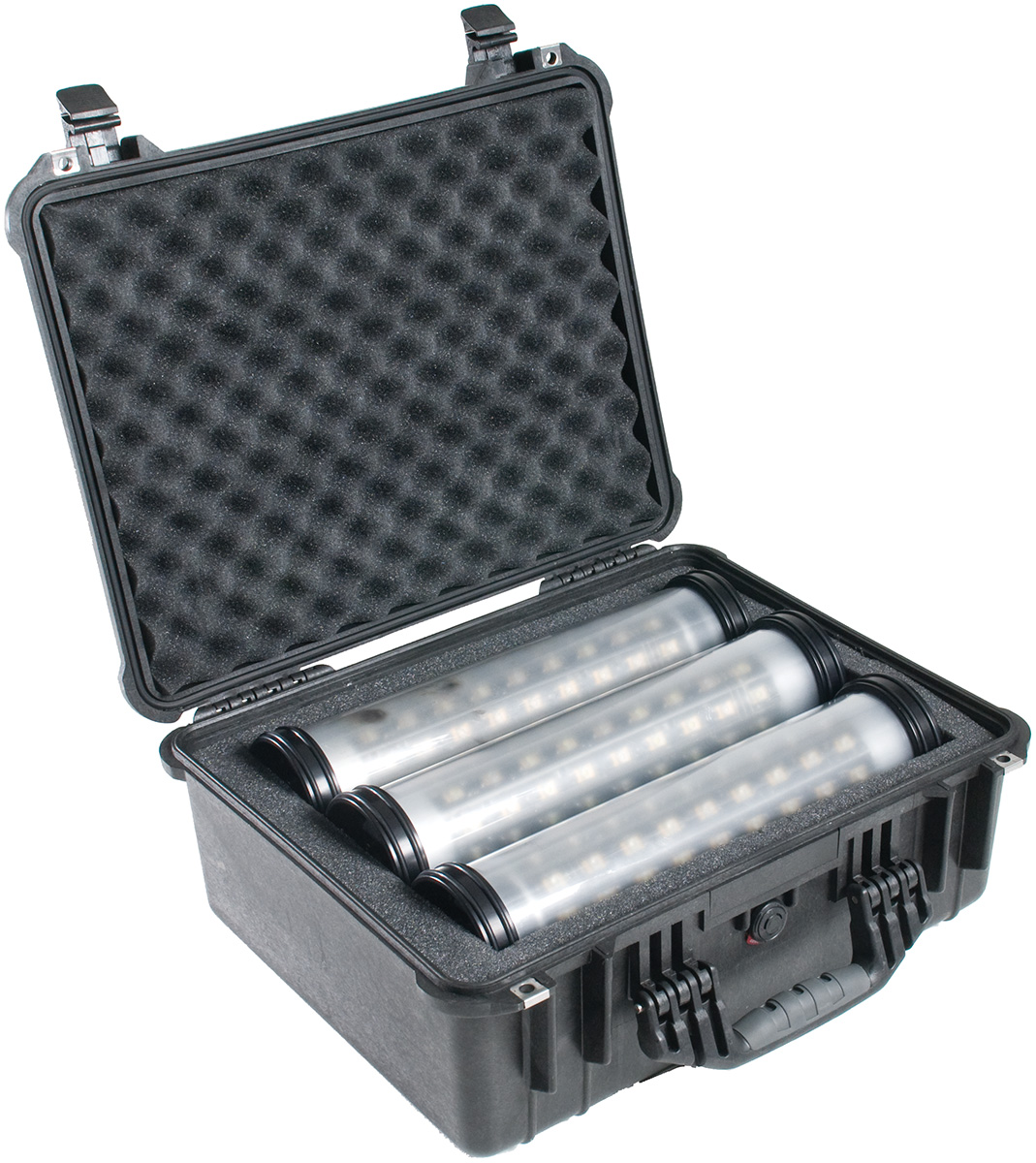

  • Housed in a Pelican™ Protector Case™ housing
  • RoHS and CE Compliant
SKU: PE9500 Categories: ,

Description

SPECIFICATIONS:

Colours
Black

Measurements
Dimensions
Head (L×W×D) – 41.4 x 10.4 x 0 cm
Closed (L×W×D) – 52.4 x 42.8 x 20.6 cm
Cord Length – 400.1 cm

Weights
Weight – 13.5 kg
Materials
Body – Aluminum
Lens – polycarbonate (PC)

Light Specs
Power
Lumens (High – 6000
Lumens (Low) – 1200
Lamp Heads – 3
Lamp Type – LED
Number of LEDs – 36
Beam Spread -210°
Rechargeable -yes
Watts – 24 W
Switch

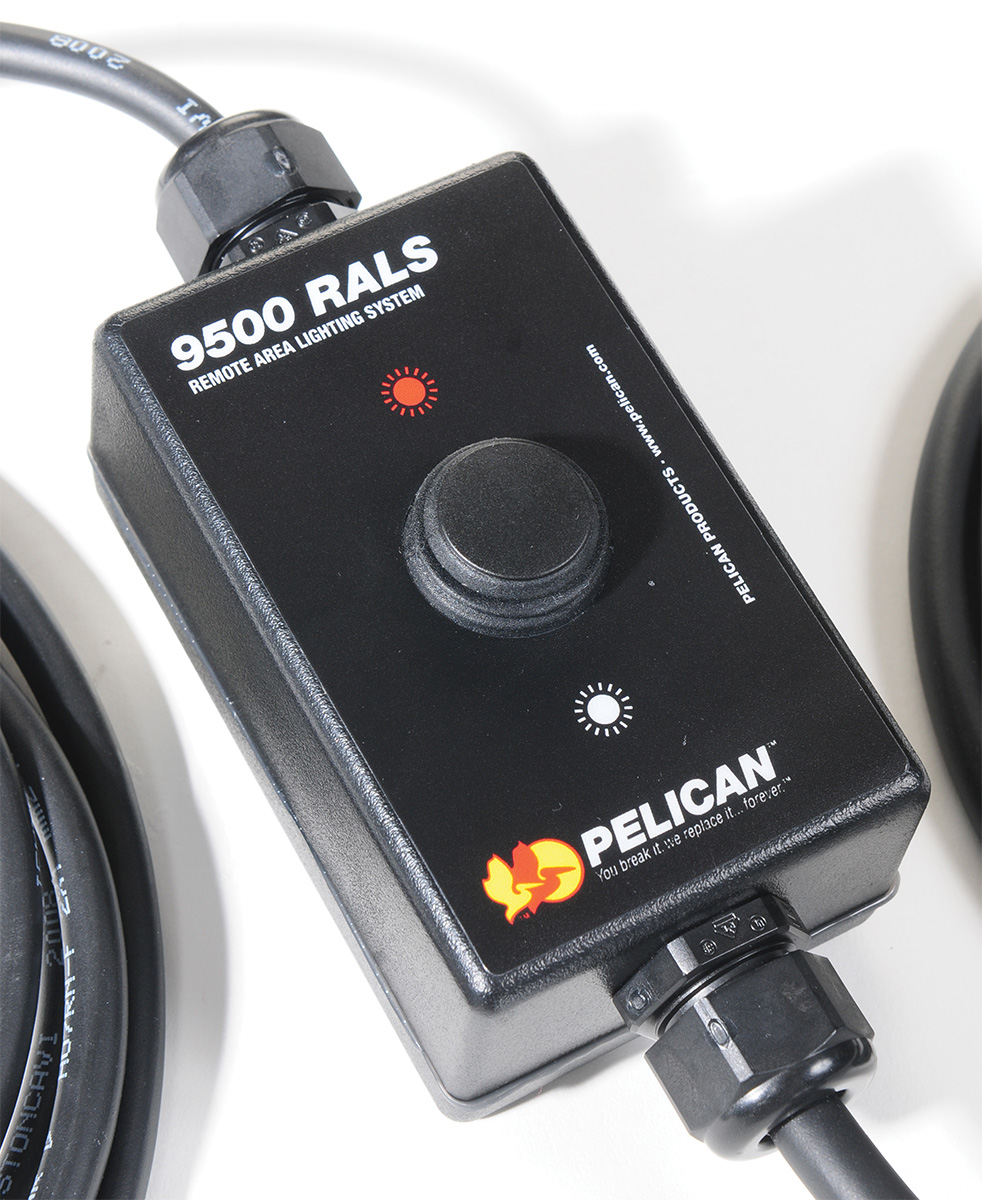

Switch Type – Rocker (inline) / Push Button (light head)
Light Modes – White / Off / Red

Other
Launch Date (Pelican) – 2009
Country of Origin – USA
