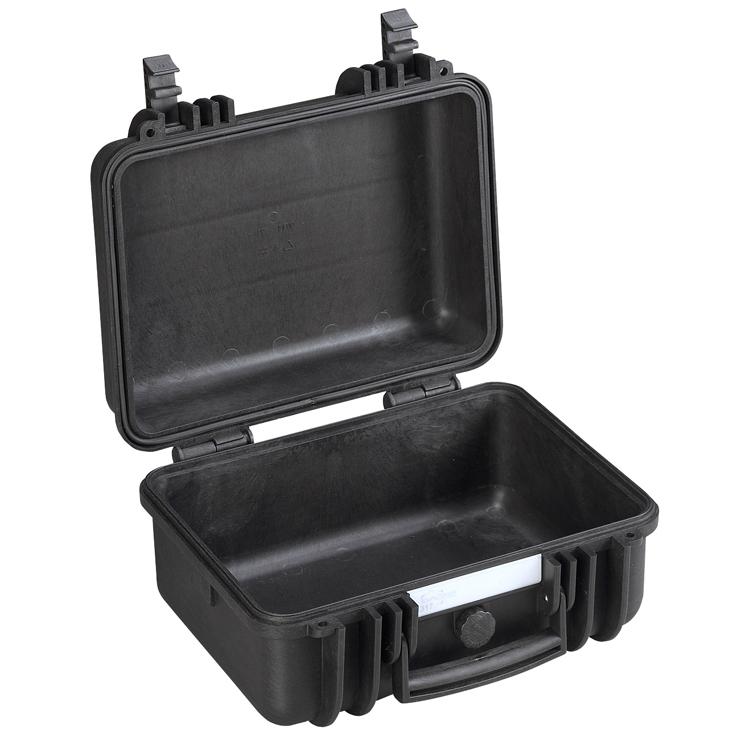

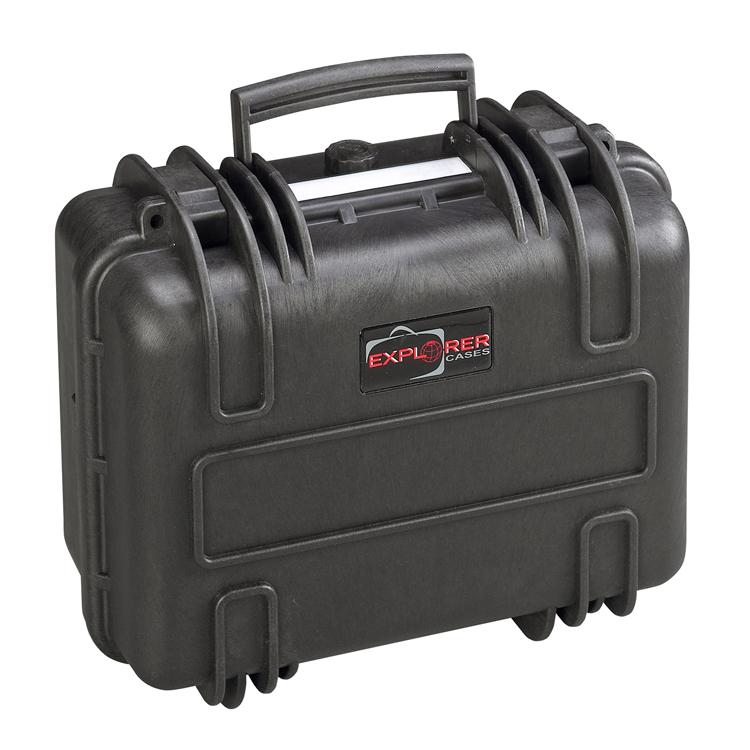

EXPLORER 3317 TRANSIT CASE

Dimensions:
External Dimensions (L x W x D): 360 x 304 x 194mm
Lid / Base Height: 68 + 102mm

Colours: black, orange, green

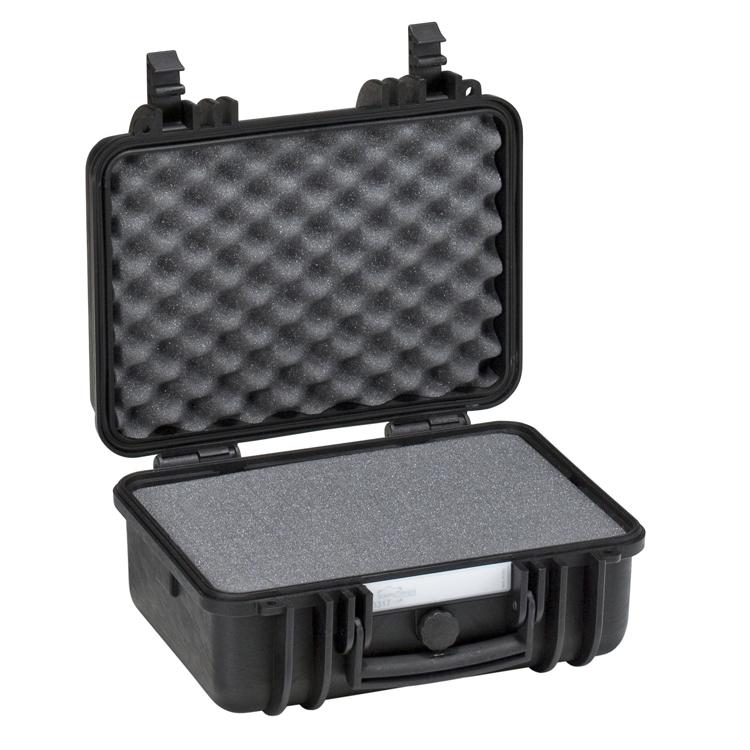

Options: no foam, pluck-able foam, full customisation service available

3317 Explorer Case Features:

  • PVC Waterproof I.D Removable Label
  • Sealing O-Ring
  • Corrosion proof Metal Hinges With Lid Stay Features
  • Internal Slots – internal slots for optional panel mounting brackets or panel mounting rings
  • Latch
  • Manual Pressure Release Valve – internal stop ring prevents valve from being completely extracted
  • Lid can be set to slide off- by releasing back screw, lid can be set to slide off when opened at 70 degrees
  • Counterbalance supports
SKU: EX3317 Categories: , ,

Description

Internal Dimensions:
Length – 330mm
Width – 234mm
Depth – 170mm
Lid – 68mm
Base – 102mm

External Dimensions:
Length – 360mm
Width – 304mm
Depth – 194mm

Weight Empty (No Foam): 2.29 Kg
Weight Full (With Foam): 2,51 Kg

Volume: 9Lt

Buoyancy: 6,70kg/max

Certification:
2002/95/EC Conformity with the Directive 2002/95/EC
DEF STAN 81-41 (level J)
IP67 Dustproof – Waterproof
STANAG 4280 (edition 2)
