External Dimensions (L x W x D): 627 x 475 x 292mm
Lid / Base Height: 60 + 190mm

Colours: black, green, orange

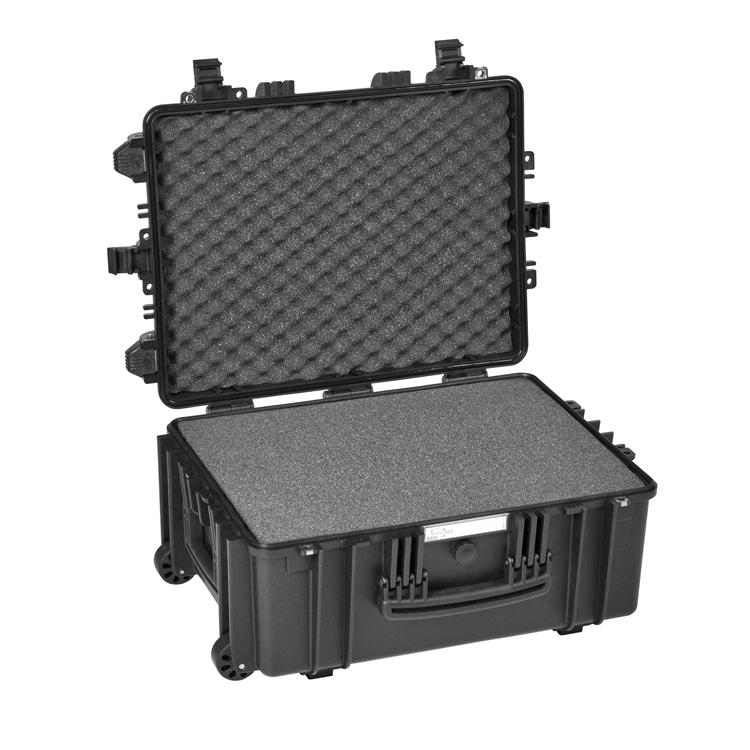

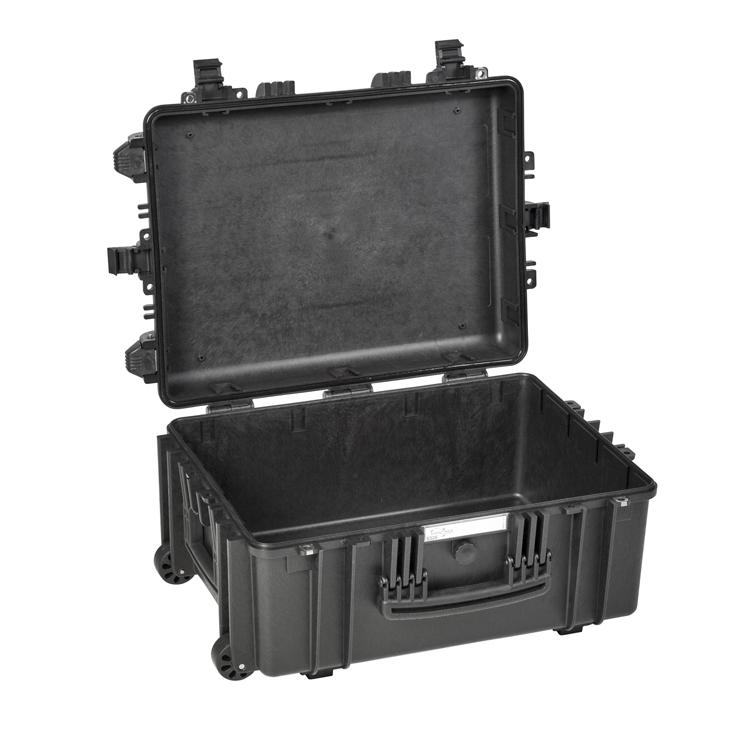

Options: no foam, with pluck-able foam, full customisation service available

5326 Explorer Case Features:

  • PVC Waterproof I.D Removable Label
  • Sealing O-Ring
  • Self-Oiling Free Running Wheels
  • Soft Grip Rubber Handle – Load tested handle, reinforced with corrosion proof steel pins
  • Stainless Steel Reinforced Padlockable Points
  • Telescopic Handle With Quick And Safe Lock-Unlock System
  • Two Man Lift Side Handles
  • Corrosion proof Metal Hinges With Lid Stay Features
  • Fixing Points – Additional fixing points on the lid, available on certain models
  • Internal Slots – internal slots for optional panel mounting brackets or panel mounting rings
  • Jam Free Latches With Easy-Opening Mechanism
  • Lid Can Be Set To Slide-Off – By releasing the back screw, lid becomes set to slide-off when opened at 70degrees
  • Manual Pressure Release Valve – internal stop ring prevents valve from being completely extracted
SKU: EX5326 Categories: , ,


Internal Dimensions:
Length – 538mm
Width – 405mm
Depth – 250mm
Lid – 60mm
Base – 190mm

External Dimensions:
Length – 627mm
Width – 475mm
Depth – 292mm

Weight Empty (No Foam): 10,00kg
Weight Full (With Foam): 11,25kg


Buoyancy: 37,20kg/max

2002/95/EC Conformity with the Directive 2002/95/EC
DEF STAN 81-41 (level J)
IP67 Dustproof – Waterproof
STANAG 4280 (edition 2)
