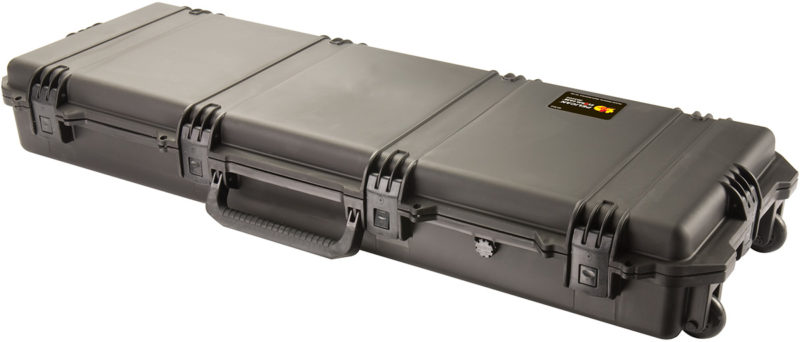

iM3200 Storm Long Case

Interior: 111.8 × 35.6 × 15.2 cm
Exterior: 119.9 × 41.9 × 17 cm

The Pelican™ Storm Case™ has the same legendary DNA as our Pelican Protector Case, with one primary difference: A unique Press and Pull latch that locks automatically, but open with a light touch.

  • Six Press & Pull Latches
  • Lightweight Strong HPX® Resin
  • Two Double-layered, Soft-grip Handles
  • Vortex™ Valve
  • Two Padlockable Hasps
  • Powerful Hinges
  • O-ring seal
  • Guaranteed For Life
SKU: PEiM3200 Categories: , ,

Description

CUSTOMISATION:

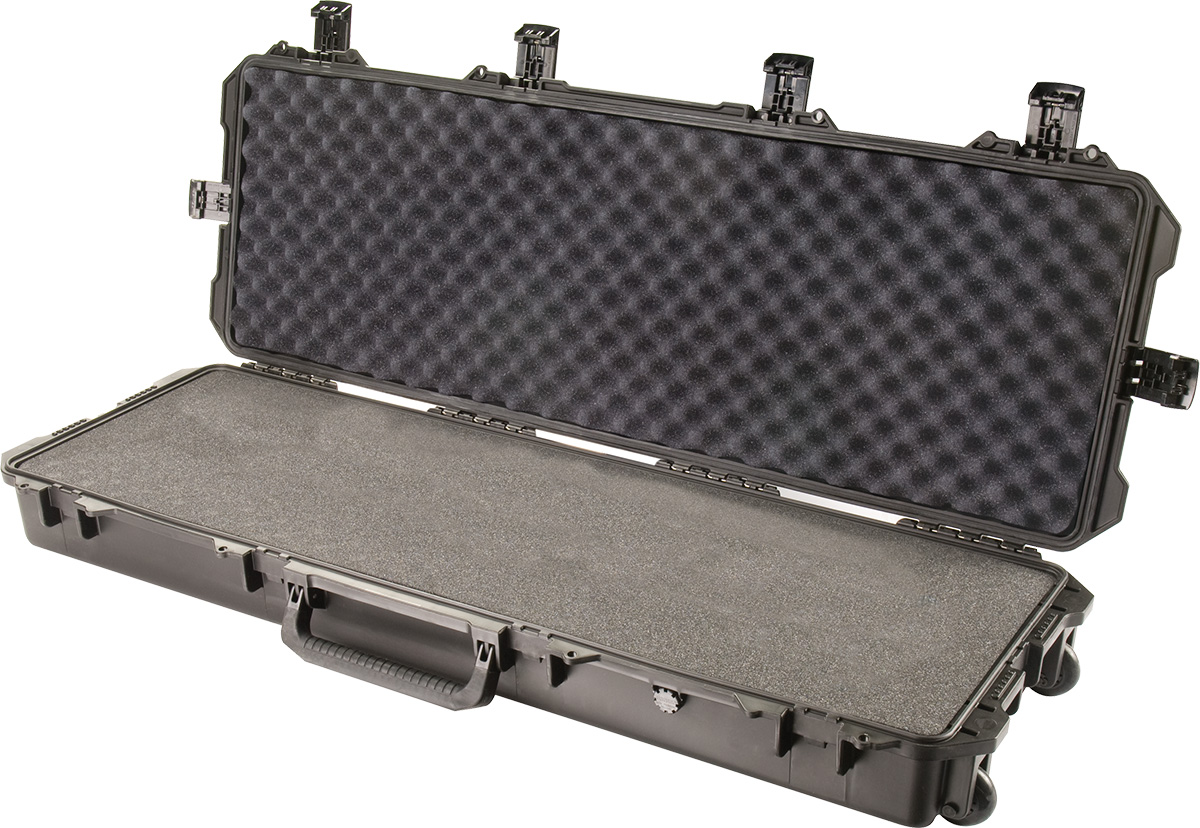

with foam

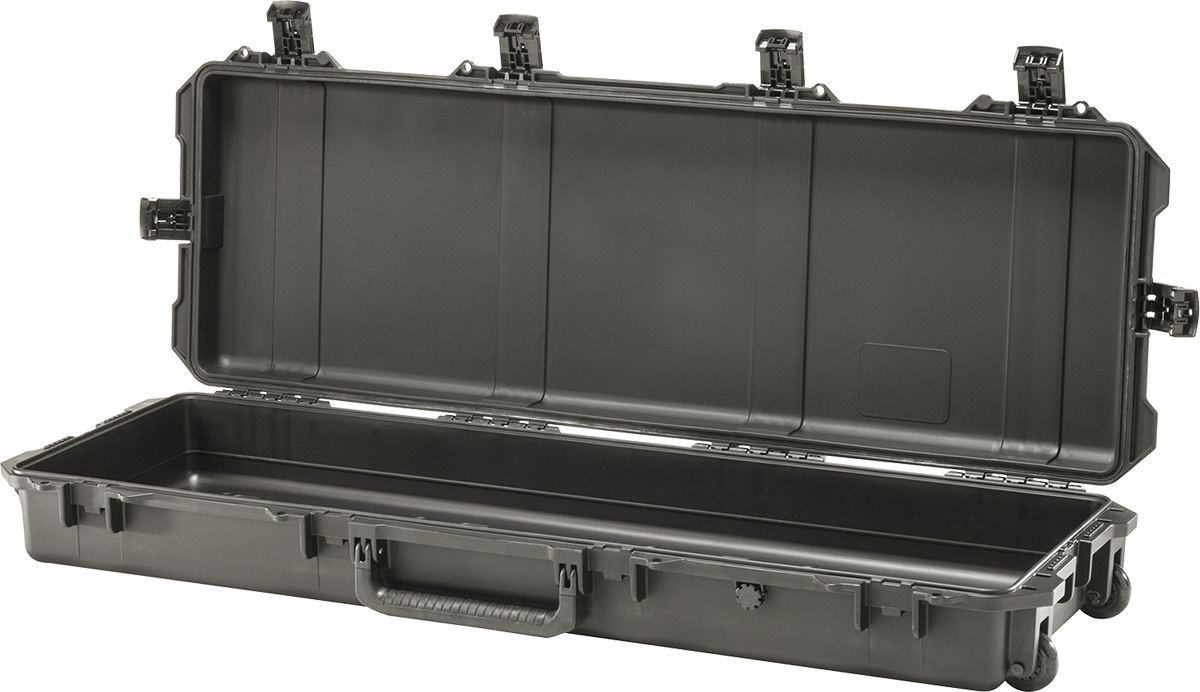

no foam
full internal fit-out

COLOURS:

black, OD green

SPECIFICATIONS:

Dimensions
Interior (L×W×D) 111.8 x 35.6 x 15.2 cm
Exterior (L×W×D) 119.9 x 41.9 x 17 cm

Measurements
Lid Depth 5.1 cm
Bottom Depth 10.2 cm
Total Depth 15.2 cm
Int Volume 0.061 m³
Padlock Hole Diameter 10 mm

Weights
Weight With Foam 9.6 kg
Weight Empty 8 kg
Buoyancy 61.7 kg

Materials
Body Material – Injection Moulded HPX™ high performance resin
Latch Material – Valox – Polybutylene Terephthalate (PBT)
Latch (Alt) Material – Xenoy – Polyester/Polycarbonate blend
O-Ring Material – EPDM
Pins Material – stainless Steel
Pins (Alt) Material – Aluminium
Foam Material – 1.3/1.35 polyester
Purge Body Material – Valox – Polybutylene Terephthalate (PBT)
Purge Body (Alt) Material – Xenoy – Polyester/Polycarbonate blend
Purge Vent Material – Gortex membrane

Temperatures
Minimum Temperature -29 ° C
Maximum Temperature 60 ° C

Approvals
Certifications – IP67
