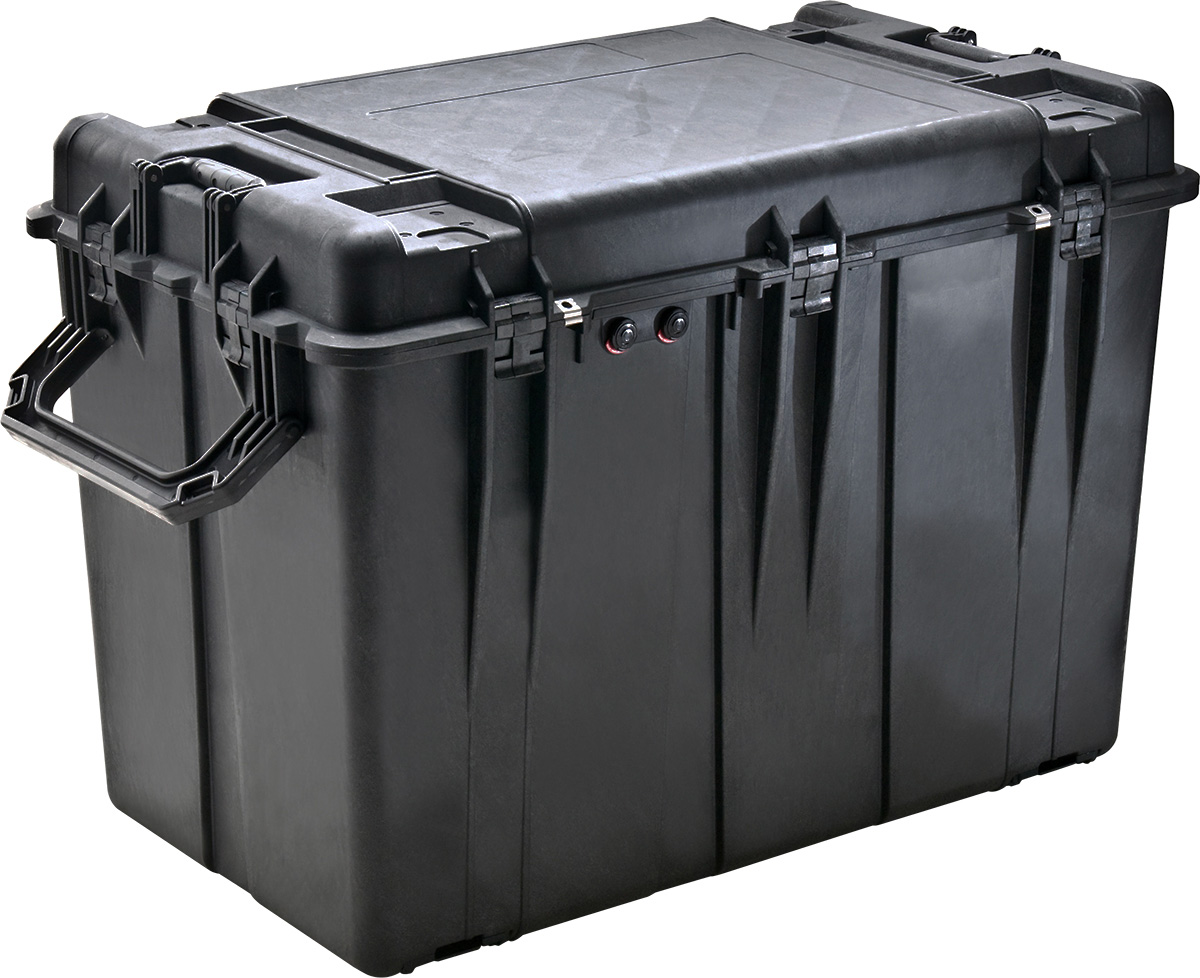

Pelican 0500 Case

Interior: 88.8 × 46.9 × 64.1 cm
Exterior: 101.5 × 59.6 × 72.8 cm

Made in the USA, these tough cases are designed with an automatic purge valve, that equalises air pressure, a watertight silicone O-ring lid, over-moulded rubber handles and stainless steel hardware.

  • Fit two 0500 Cases per pallet, four when stacked!
  • Store documents outside the case with our Document Container
  • Can be inverted and used as a pallet with an airtight cover
  • Watertight, crushproof, and dustproof
  • Open cell core with solid wall design – strong, light weight
  • Double wide grip fold down handles – makes lifting easy
  • Easy open Double Throw latches
  • Dual Integrated Automatic Pressure Equalisation Valves
  • Lid is completely removable
  • O-ring seal
  • Optional Caster Wheel Kit complete with brakes
  • Optional Pallet Riser Kit
  • Lifetime Guarantee of Excellence
pelican 500 protector transport case
pelican 500 heavy duty military casepelican 500 watertight protector case
SKU: PE500 Categories: , ,



with foam
no foam
custom internal fit-out
pallet riser kit




Interior (L×W×D) 88.8 x 46.9 x 64.1 cm
Exterior (L×W×D) 101.5 x 59.6 x 72.8 cm

Lid Depth 5.7 cm
Bottom Depth 58.4 cm
Total Depth 64.1 cm
Int Volume 0.267 m³

Weight With Foam 26.6 kg
Weight Empty 22.7 kg
Buoyancy 353.8 kg

Body Material Polypropylene
Latch Material EXL
O-Ring Material Polymer
Pins Material Stainless Steel
Foam Material 1.3 lb Polyurethane
Purge Body Material ABS
Purge Vent Material 3 Micron Hydrophobic Non-Woven

Minimum Temperature -40 ° C
Maximum Temperature 99 ° C
