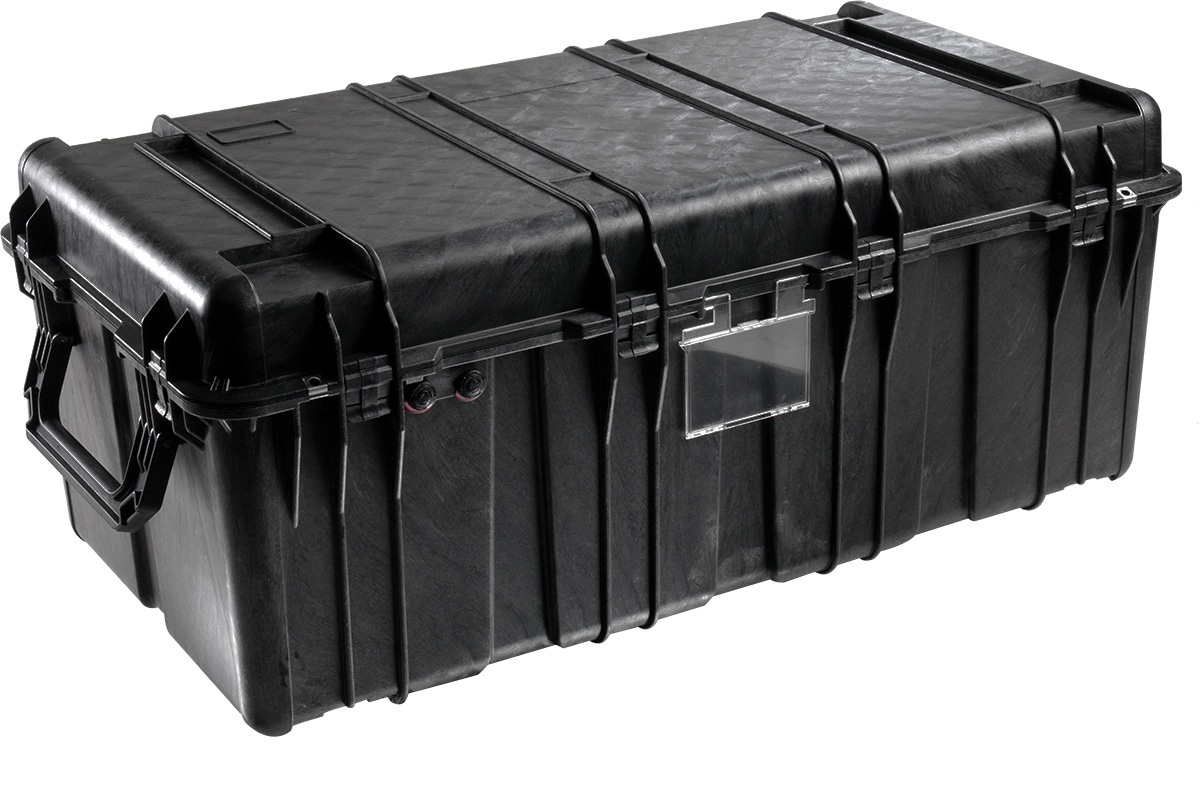

Pelican 0550 Case

Interior: 120.8 × 61.1 × 44.9 cm
Exterior: 129.7 × 70 × 57.9 cm

With over 11 cubic feet (0.311 cubic meters) of space, you can store, protect, and move large loads in seconds. The reinforced honeycomb deck and lid construction provide support for heavy equipment, or multiple stacking on a 463L pallet. Opening the case at any altitude is not a problem- the dual integrated automatic pressure equalisation valves keep moisture out and prevent vacuum lock, and the double wide grip makes lifting easy. With an IP55 certification, the 0550 Transport Case will protect your gear against rain and dirt. The 0550 Transport Case: Built to move-by forklift, by wheel, by hand.

  • Fit six 0550 Cases per 463L military pallet, 18 when stacked!
  • Over 11ft3 (.311m3) of storage space
  • Four extra-deep base-to-lid locking cleats ensure maximum stacking stability
  • Built to move: by forklift, by wheel or by hand
  • Open cell core with solid wall design – strong, light weight
  • Store documents outside the case with our Document Container
  • Easy open Double Throw latches
  • Stainless steel hardware and padlock protectors
  • Locking metal Lidstays keep lid locked in open position
  • Reinforced honeycomb deck and lid for added strength
  • Dual Integrated Automatic Pressure Equalisation Valves
  • O-ring seal for dust and water resistant seal (IP55)
  • Optional Caster Wheel Kit complete with brakes
  • Optional Pallet Riser Kit
  • Lifetime Guarantee of Excellence
pelican 0550 deep transport case
pelican 0550 deep transport protector case
SKU: PE550 Categories: , ,

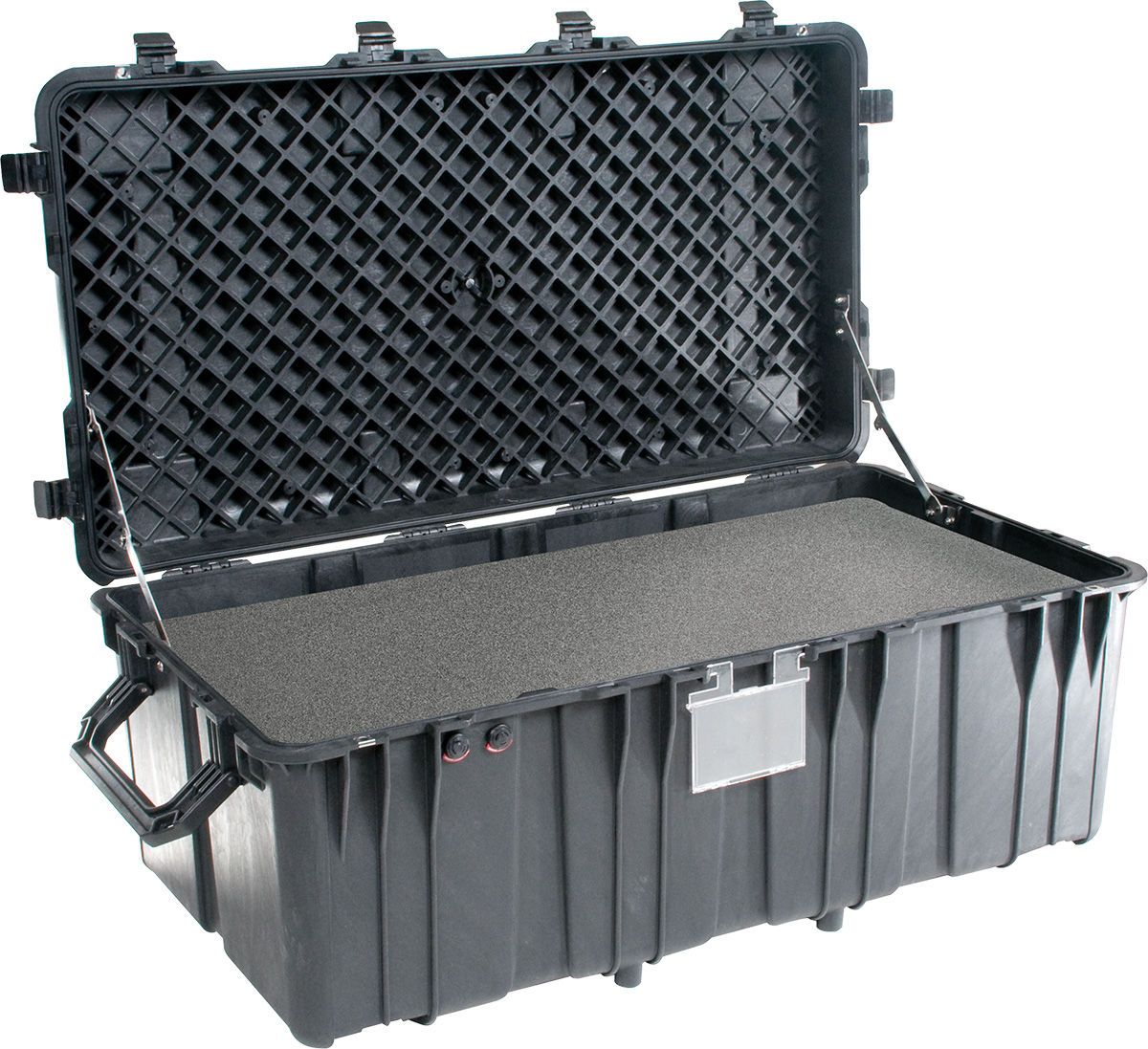

with foam

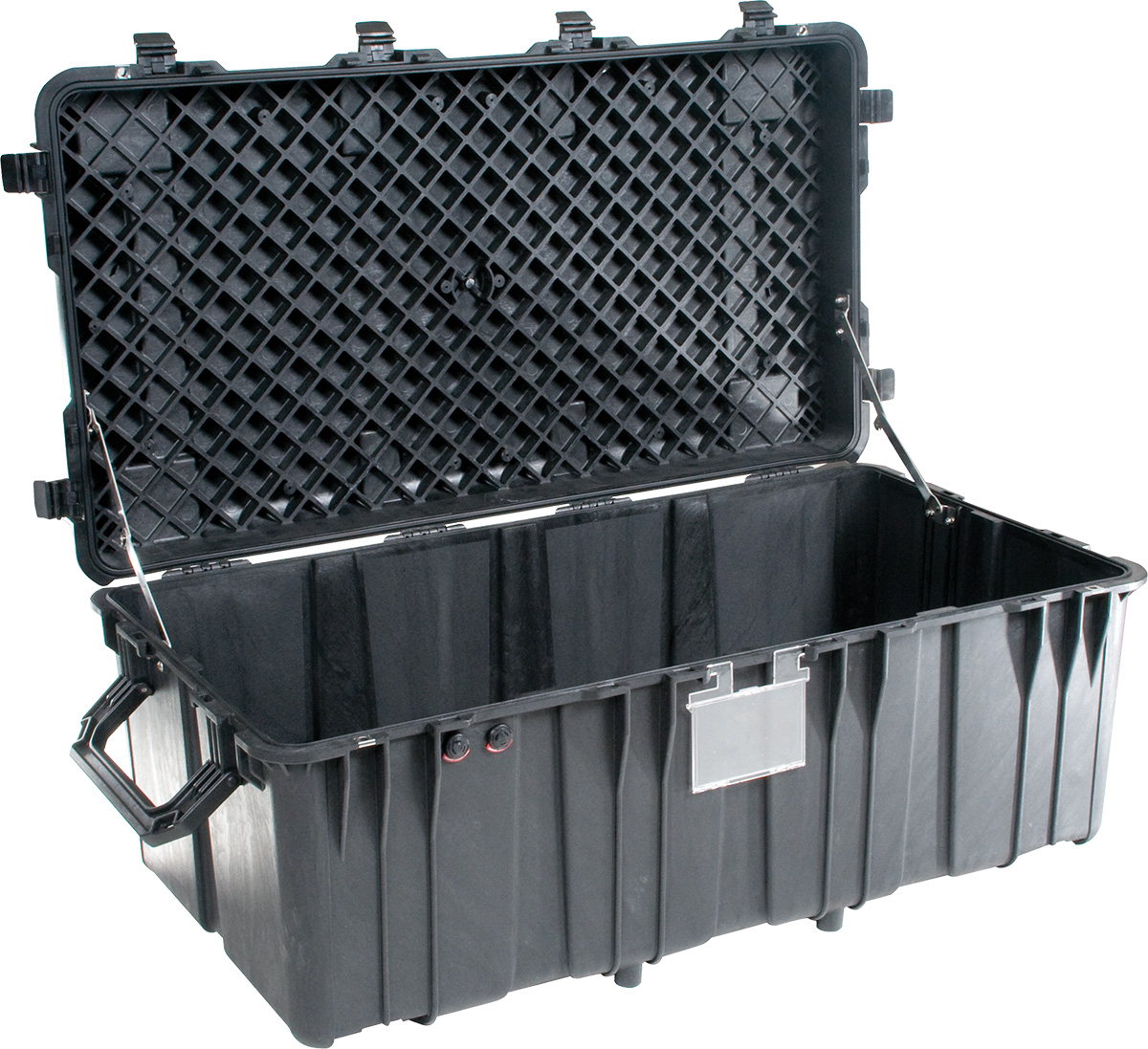

no foam
custom internal fit-out

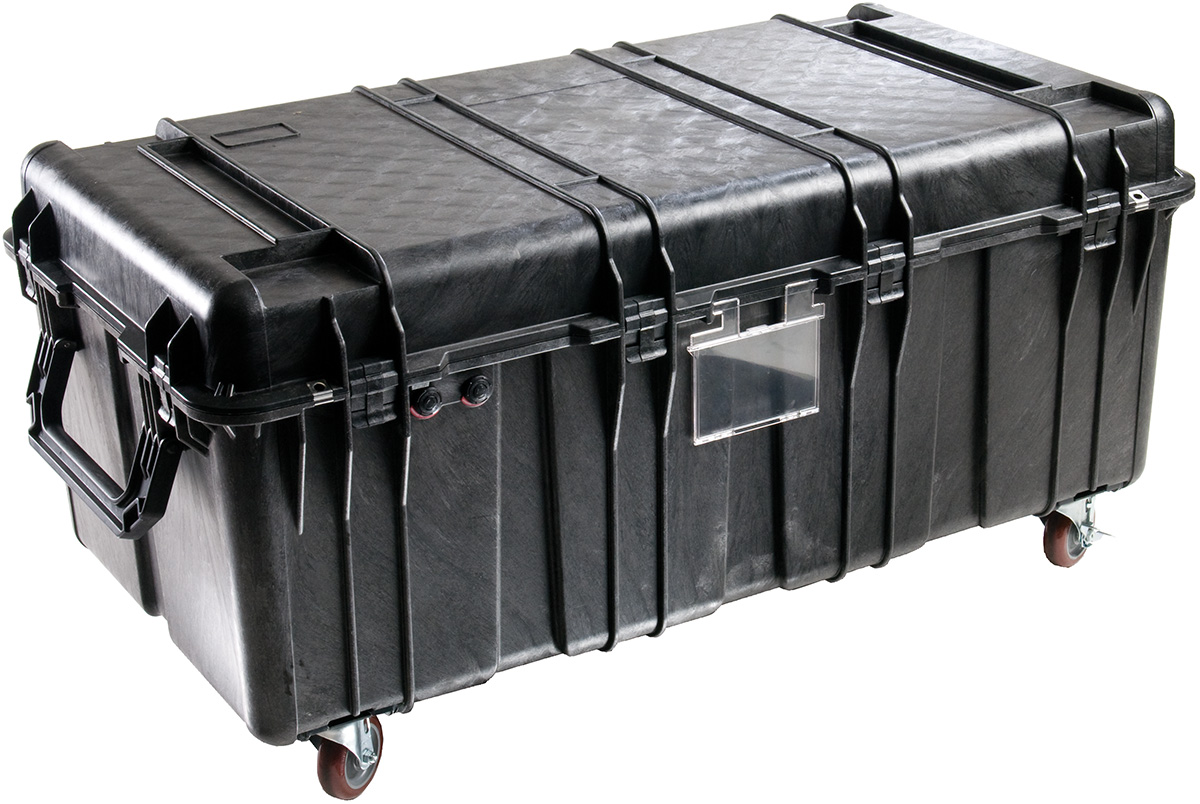

optional castors or riser kit




Interior (L×W×D) 120.8 x 61.1 x 44.9 cm
Exterior (L×W×D) 129.7 x 70 x 57.9 cm

Lid Depth 8.1 cm
Bottom Depth 36.8 cm
Total Depth 44.9 cm
Int Volume 0.332 m³

Weight With Foam 43.1 kg
Weight Empty 35.9 kg
Buoyancy 371.9 kg

Body Material Polypropylene
Latch Material ABS
O-Ring Material Polymer
Pins Material Stainless Steel
Purge Body Material ABS
Purge Vent Material 3 Micron Hydrophobic Non-Woven

Minimum Temperature -40 ° C
Maximum Temperature 99 ° C
